September 2018 LIP of the Month

Cretaceous (ca. 90 Ma) kimberlites in southern India and South Africa and their links with Madagascar Large Igneous Province vis-a-vis Marion Hotpot

N.V.Chalapathi Rao¹ and Richard Ernst^2,3

¹Department of Geology, Center of Advanced Study, Institute of Science, Banaras Hindu University, Varanasi-221005 India (e-mail: nvcrao@bhu.ac.in)

² Department of Earth Sciences, Carleton University, Ottawa, Canada (e-mail: Richard.Ernst@Ernst.Geosciences.com )

³ Faculty of Geology and Geography, Tomsk State University, Tomsk, Russia

Introduction and background information:

The relationship between  small-volume alkaline potassic melts such as kimberlites and large-volume flood basalts represented in Large Igneous Provinces (LIPs) generated by mantle plumes is a matter of petrological as well as geodynamic interest (see Mitchell, 1995; Schisel and Smail, 2001; Lehmann and Chalapathi Rao, 2011; Zhang et al 2013; Ernst and Jowitt, 2013). Such an association between kimberlites, flood basalts and mantle plumes has been well documented in various LIPs such as (i) the Siberian Traps, (ii) the Karroo- Ferrar, (iii) the Parana-Etendeka, (iv) the Keewinawan, (v) the Deccan etc. and is considered to be a cause-and effect relationship via mantle plumes thereby denoting a petrogenetic connection (e.g. Chalapathi Rao and Lehmann, 2011; Ernst and Jowitt, 2013).

Widespread basalts, mafic dykes and felsic volcanic rocks occur in Madagascar with eruption ages of 90.1 ± 1.2 Ma to 84.5 ± 0.7 Ma  and are considered to be a part of the Madagascar LIP of Bryan and Ernst, 2008) and related to the Marion hotspot and the breakup of Madagascar and the Seychelles from Greater India at ~88 Ma (Storey et al., 1995, 1997; Torsvik et al., 1998; Cucciniello et al., 2013; Reeves, 2014; Buiter and Torsvik, 2014). Scattered dolerite dykes from the (i) northern and southern coast of Kerala (86.5 ± 0.8 Ma to 85 Ma; Radhakrishna et al., 1994), (ii) Agali-Anaikatti area in the southern granulite terrain (80 to 90 Ma; Radhakrishna et al., 1999), and (iii) Huliyadurga area Karnataka, eastern Dharwar craton (90 ± 1 Ma and 87.5± 0.9 Ma; Anil Kumar et al., 2001), as well as felsic lavas from St. Mary’s island, off Mumbai (85.6 ± 0.9 Ma; Pande et al., 2001), are generally regarded to be the isolated magmatic expressions of the Marion hotspot within the Indian continental plate. In this review article, extracted from Chalapathi Rao et al. (2016), Dongre et al. (2017) and Ernst and Jowitt, 2013). we highlight the role of the Marion hotspot in the generation of diamondiferous kimberlites of 90 Ma age. We first briefly consider the link with the South African kimberlites (which has been previously presented in Ernst and Jowitt, 2013), and then the bulk of this contribution is focused on new evidence for c. 90 Ma kimberlites in southern India.

90 Ma kimberlites from South Africa

There are kimberlite clusters in southern Africa with a range of ages (e.g. Schissel and Smail, 2001). As noted by Ernst and Jowitt (2013) some of these can be linked, on the basis of age and proximity with known plume-related LIPs of the region, the 183 Ma Karoo–Ferrar, and 134 Ma Parana-Etendeka, and c. 90 Ma Madagascar LIPs. Madagascar was close to southeast Africa at c. 90 Ma (Storey, 1995; Torsvik et al., 2000) inviting suggestion of a connection between this 90 Ma LIP and southern African kimberlites. The 90 Ma kimberlite fields range from 700-1200 km away from the Madagascar plume center (star) at this time using the reconstruction of Torsvik et al. 2000 (Fig. 1). However, it should be noted that the reconstruction in Figure 5D of Reeves (2014) would place the Madagascar plume about twice as far from the coast at this time, increasing the distance to 1400-1900 Ma km. This increased distance is large for a plume head radius (typically about 1200 km; Campbell and Griffiths, 1990) and may complicate the linkage of the South African 90 Ma kimberlites with the Madagascar plume centre.

Late Cretaceous kimberlite of ca. 90 Ma from the Eastern Dharwar craton, southern India

The Eastern Dharwar craton (EDC) in southern India is host to >100 kimberlite intrusions which are distributed in three distinct fields (Fig. 2): (1) the southern Wajrakarur kimberlite field (WKF); (2) the northern Narayanpet kimberlite field (NKF); and (3) the central Raichur kimberlite field (RKF). The WKF is the largest of these fields, and comprises five diamondiferous kimberlite clusters: Wajrakarur, Lattavaram, Chigicherla, Kalyandurg and Timmasamudram (Fig. 2). The Timmasamudram cluster (TKC) consists of four kimberlite pipes (TK-1, TK-2, TK-3 and TK-4) located in a small area of 2 km² near Timmasamudram village (14^o31’45”N; 77^o18’30”E; Fig. 2; Srinivas Choudary et al., 2007).  All bodies are semi-circular to oval in shape with dimensions of a few tens of meters and are emplaced in the TTG (Tonalite-Trondjhemite-Granodiorite) suite of the Peninsular Gneissic Complex. There are no outcrops of these kimberlites and they are capped by ~ 1m thick soil cover. Processing of kimberlite samples by the Geological Survey of India revealed TK-1, TK-2 and TK-3 to be non-diamondiferous whereas a very high incidence of diamonds of gem quality, the highest recorded so far from any of the kimberlites from India, has been reported from TK-4 (Srinivas Choudary et al. 2007; Sridhar and Sinha, 2008). TK-4 also shows two distinct kimberlite pulses - a coarse grained and a very fine grained variant (Sridhar and Sinha, 2008). Sampling of all four TKC kimberlites was done from pits/trenches excavated by the Geological Survey of India. Samples collected show varying degrees of pervasive alteration. Two distinct kimberlite pulses in TK-1 pipe – a microcrystic and macrocrystic variety (Fig. 3)- are identified (Chalapathi Rao et al. 2016). The microcrystic variety is finer grained with darker matrix and resembles a tuffisitic facies of a kimberlite sampled from the diatreme zone (see Hetman, 2008). The macrocrystic variety is coarser grained with relatively lighter matrix and possess the inequigranular texture implying its sampling from the hypabyssal or root zone (Mitchell, 2008). Petrographic study reveals that, with the exception of microcrystic pulse in TK-1, rest other TKC kimberlites are characterized by an inequigranular texture dominated by large sub-rounded to rounded olivine macrocrysts and subhedral to euhedral olivine microphenocrysts (Fig. 4). Serpentinisation and carbonitization of both types of olivine is common. Phlogopite, spinel, perovskite and carbonate are the other ubiquitous matrix phases present in variable proportions. High modal contents of phlogopite are noticed in TK-4 and some of which are also chloritized. Chocolate brown colored euhedral to subhedral perovskite (~30- 100 μm) is an important sub-liquidus phase (Mitchell, 1995) and occurs either as discrete grains, or as “necklaces” around earlier formed olivines Spinels dispaying ‘atoll’ structure are also noticed.

TK-1 and TK-3 perovskites gave Mesoproterozoic ages of 1086 ± 19 Ma (Fig. 5A) and 1119 ± 12 Ma (Fig. 5C), respectively. However, a population of perovskite from TK-1 also gave a significantly younger, Late Cretaceous, age of 86.8 ± 3.4 Ma (Fig. 5B). No age could be obtained for the TK-4 perovskites (Fig. 5D) as they show effects of alteration (Chalapathi Rao et al 2016). The Nd isotopic composition was measured on the same perovskite grains on which U-Pb ages were obtained. The ε_Nd(t_{1120 Ma}) values of +2.1 to +6.7 of the TK-3, TK-4 and part of the TK-1 perovskites are similar (Fig. 6) and show a depleted signature characteristic of Group I (archetypal) kimberlites from the Eastern Dharwar craton and from southern Africa (Wu et al., 2013; Chalapathi Rao et al., 2013). However, the ε_Nd(t_{90 Ma}) value of -6.5 ± 1.2 (n=5) of the younger population of perovskite sampled from TK-1 is quite distinct in comparison and displays an enriched signature characteristic of Cretaceous Group II kimberlites from the Mainpur field, Bastar craton, central India  (Lehmann et al., 2010) and Kaapvaal craton, southern Africa (Coe et al., 2008).

Mineral chemistry

Two populations of spinel, which show little variation in terms of morphology,  can be distinguished in TK-1, based on MgO and Cr₂O₃ contents: (i)  chrome-spinels having higher MgO (upto 12.2 wt. %) and high Cr₂O₃ (6.6- 49.2 wt.%, Cr/Cr+Al: 0.70-0.96) occurring in the TK-1 macrocrystic variety of kimberlite and (ii) low Cr-spinels having lower MgO (up to 8.9 wt.%) and highly variable Cr₂O₃ (up to 0.07-48 wt.%, Cr/Cr+Al: 0.08-0.96) in the TK-1 microcrystic variety. These populations likely reflect compositional differences between the two different kimberlite pulses in TK-1.

The phlogopites in TK-1 (macrocrystic) are depleted in Al₂O₃ (<10.2 wt.%) as well as in TiO₂ (<2.4 wt.%), and plot predominantly in the field of groundmass phlogopites in orangeites (Fig. 7). Phlogopites in TK-4 are relatively enriched in TiO₂ (1.6 – 4.6 wt.%) and Al₂O₃ (11.6 – 15.3 wt.%) and follow the compositional trend of ultramafic lamprophyres (aillikites; Tappe et al., 2004), perhaps suggesting an affinity with such rocks for TK-4. Phlogopites in TK-1 (macrocrystic variety) follow the tetraferriphlogopite trend of increasing Fe accompanied by Al depletion, which is typical of orangeites (Mitchell, 1995). Cr₂O₃ contents vary widely with relatively higher contents in TK-4 (up to 1.2 wt.%), and lower contents (mostly < 0.07 wt%) in TK-1.

Perovskite is more abundant, and comparatively smaller in size (~10 µm), in the microcrystic variant of TK-1, as opposed to the macrocrystic variant. Perovskites show wide compositional variation in terms of their TiO₂ contents (TK-1 microcrystic variant: 51.1-57 wt.%, macrocrystic variant: 49.4-58.7 wt.%, TK-3: 53.2-56 wt.%, TK-4: 46.2-62.4 wt.%) and REE₂O₃ (TK-1 microcrystic variant: 1.8-3.3 wt.%, TK-1 macrocrystic variant: 2-4.4 wt.%, TK-3: 4.1-6.4 wt.%, TK-4: 4.4-7.2 wt.%). Perovskites in TK-1 (macrocrystic), TK-3 and TK-4, with their higher TiO₂ and REE₂O₃ contents, display a marked compositional affinity with perovskites in orangeites (Donnally et al., 2011; Fig. 8).

Macrocrystal and phenocrystal olivine are ubiquitous in the rocks of the TKC. Olivines in TK-1 are fresh, while those in TK-3 and TK-4 are mostly pseudomorphed by serpentine. The olivines in TK-1 (macrocrystic) are on average, more magnesian (Fo: 87.9-92.8) than in TK-1 (microcrystic), while those in TK-1 (microcrystic) are compositionally more diverse (Fo: 84.9-93.8) (Fig. 8). This may be a reflection of source characteristics, e.g. olivines in orangeites tend to be slightly more magnesian than olivines in Group 1 kimberlites (Mitchell, 1995). Ni contents in both variants of the TK-1 pipe range from 0.29 to 0.42 wt.%.

Clinopyroxene is present as small, unzoned, prismatic crystals in the groundmass of only the TK-1 pipe. The clinopyroxene in the present study is a diopside of restricted compositional range, with little compositional difference between the macrocrystic and microcrystic variants (with the exception of Al₂O₃ and TiO₂). In the TK-1 microcrystic variant, Al₂O₃ varies up to 1.76 wt.% and TiO₂ up to 1.09 wt.%, while in the macrocrystic variant Al₂O₃ varies up to 0.88 wt.% and TiO₂ up to 3.27 wt.%. The Fe-Mg-Ca compositions of clinopyroxenes at TK-1 (Fig. 8) are comparable with Fe-poor diopsides occurring in orangeites from southern Africa (Mitchell, 1995) and central India (Chalapathi Rao et al.,  2011), and are markedly different in composition to that of clinopyroxenes from EDC kimberlites which have much higher FeO contents (Fig. 8).

Whole-rock geochemistry

The rocks are characterised by a wide variation in SiO₂ (28- 49.3 wt. %), withTK-1 (microcrystic and macrocrystic varieties) and TK-4 (macrocrystic variety) showing the higher SiO₂ values (40.5-49.3 wt.%). These elevated SiO₂ contents are similar to that of (i.e. are characteristic of) orangeites from the Bastar craton (Chalapathi Rao et al., 2011) as well as the Kaapvaal craton (Becker and Le Roex, 2006). Marked geochemical differences are also observed for the microcrystic and macrocrystic variants of TK-1. The microcrystic variant contains lower MgO (~11 wt.%), higher CaO (~13 wt.%) and K₂O (~1.6 wt.%) whereas the macrocrystic variant is highly enriched in MgO (27-28 wt.%) and depleted in CaO (~7 wt.%) and K₂O (<1 wt.%).

The diamondiferous TK-4 pipe shows higher bulk MgO (17-2 wt.%) and Mg # (80-83), similar to TK-1 (macrocrystic). MgO in samples from TK-2 and TK-3 is relatively low, ranging from 8.97 to 11.88 wt.%, and is accompanied by a lower Mg# (60 to 72). Lower Mg# may result from water-rock interaction, and the leaching of MgO, as also reflected in the somewhat altered nature of these samples. The TiO₂ content of bulk samples of the TKC pipes varies from 2- 4 wt.%, with the exception of TK-1 (macrocrystic) and TK-4, which have the lowest TiO₂ (about ~1 wt. %)).  Such low TiO₂ is also a characteristic feature of the orangeites from the Bastar and Kaapvaal cratons. In plots of major element variation (Fig. 9), TK-1 (macrocrystic) and TK-4 samples are confined to the field of orangeites.

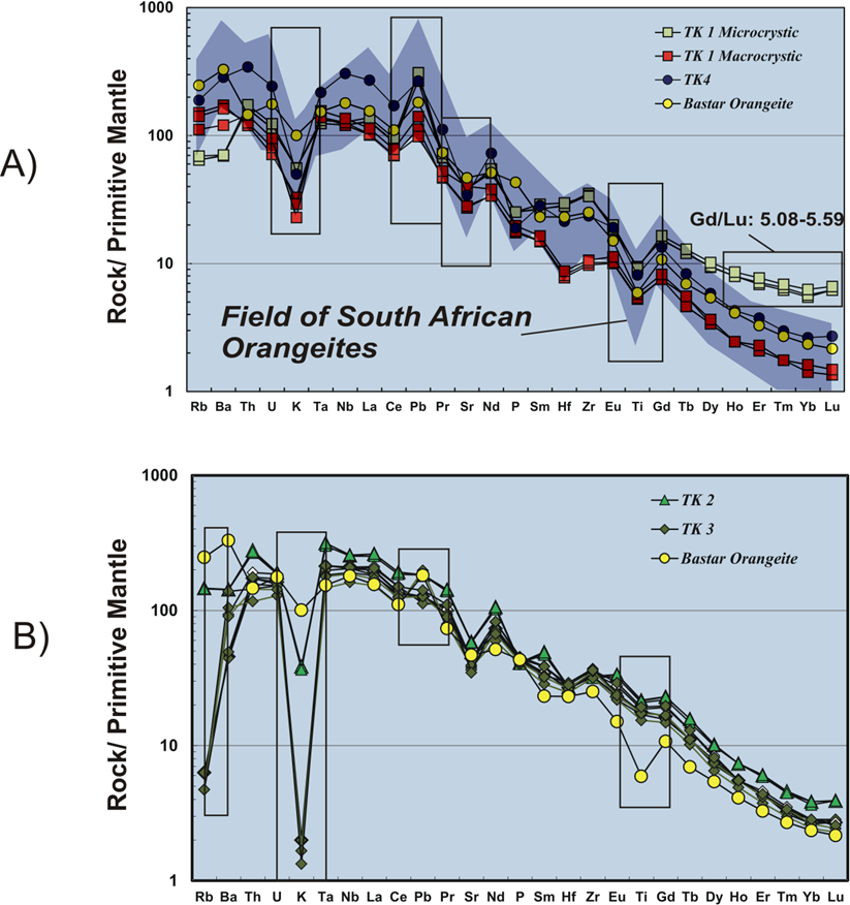

Primitive-mantle-normalized trace element abundances for the samples of the TKC show two distinct types of patterns (Fig. 10). Both variants of TK-1 and TK-4 have abundance patterns similar to that of orangeite (Fig. 10), e.g. a positive Pb anomaly and negative Rb, K, Sr and Ti anomalies. Samples from TK-2 and TK-3 show parallel patterns with pronounced negative Rb, Ba and K anomalies, and somewhat less pronounced negative spikes in the case of Ti, which differs from orangeites (Fig. 10). Positive Pb anomalies are characteristic of Kaapvaal craton orangeites (Becker and Le Roex, 2006) and Bastar orangeites (Chalapathi Rao et al., 2011), but are absent in the samples from TK-2 and TK-3.

Orangeite nature of TK-1 (macrocrystic) and TK-4

The lower TiO₂, and the higher SiO₂ and K₂O content of TK-1 (macrocrystic) and TK-4 reflects their orangeitic nature (Smith et al., 1985; Becker and Le Roex, 2006). Bi-variate plots between LIL and HFS elements e.g. La-Rb and Nb-Ba, also highlights the same aspect (Fig. 11). As LILE are known to be more sensitive to secondary alteration, we further tested our argument by using trace element ratios which are generally unchanged during secondary processes and also during magmatic fractionation. Plots of Ba/Nb vs Ce/Pb, La/Yb vs La/Sm and the Pb anomaly vs Lu/Gd shows a marked orangeitic affinity for TK-1 (macrocrystic) and TK-4 (Fig. 11). Furthermore, the the mineral chemistry data also provides support to the orangeite classification of TK-1 (macrocrystic) and TK-4.

In situ perovskite dating yields a ²⁰⁶Pb/²³⁸U age of 1086±19 Ma for TK-1 (microcrystic) and 1119±12 Ma for TK-3, and a significantly younger Late Cretaceous age of 86.8 ± 3.4 Ma for TK-1 (macrocrystic; Chalapathi Rao et al.,   2016). No age could be obtained for TK-4 due to pervasive alteration of the perovskites. The ¹⁴³Nd/¹⁴⁴Nd _(i) for the perovskites from TKC kimberlites range from 0.51183 to 0.51231, with ε_Nd values of -8.12 to +7.93 (Chalapathi Rao et al., 2016). The more enriched values of ε_Nd (-5.31 to -8.12) for TK-1 (macrocrystic) further attest to its orangeitic character. It is evident from a binary plot of ε_Nd versus ¹⁴³Nd/¹⁴⁴Nd_(i) (Fig. 12) that perovskite from TK-4 yields ε_Nd values of +5.20 to +7.93, which exceeds the accepted upper limit of ε_Nd Group I kimberlites world-wide. We propose that this anomalously high value could be an artifact arising from the assumption of a kimberlite emplacement age of 1100 Ma. Mineralogical and geochemical characteristics imply an orangitic nature for TK-4 similar to that of TK-1 (macrocrystic). Hence, by assuming an emplacement age of say 90 Ma (i.e. that of the TK-1 macrocrystic variant), an enriched ε_Nd values of -10.67 to -12.63 is claculated for T4. Such values fall within the orangeite field, and follow the same mantle-array displayed by the TK-1 (macrocrystic) and the Bastar orangeites. It is further evident from Figure 12 that the data for TK-1 (macrocrystic) and TK-4 (after assigning an emplacement age of 90Ma) are more similar (i.e. comparable) to orangeites, than to lamproites and ‘transitional’ kimberlites. In contrast, the data for TK-1 (microcrystic) and TK-3 are clearly confined to the world-wide data field for archetypal kimberlites (Group 1 kimberlites).

Implication of different magmatic pulses in TKC

Multiple pulses (episodes) of kimberlite magma are clearly present in the TKC. In the case of TK-4, macrocrystic as well as microcrystic phases are observed within a single intrusion (Srinivas Chowdary et al., 2007). In TK-1, two different variants (a microcrystic xenolithic variety, occurring in a macrocrystic host) are observed. These have sufficient mineralogical, major element, trace element, Nd isotope, and age differences, to demonstrate that their derivation from different (separate) batches of kimberlite magma, and discount the possibility of being autoliths.

Kimberlites with more than one age population of perovskite, representing xenoliths of an earlier phase of kimberlite intrusion, occur in the Elliott County and Buffonta kimberlite clusters (Heaman and Kjarsgaard, 2000; Heaman et al., 2004). A spatial association of Paleoproterozoic Group I kimberlite and Cretaceous Group II kimberlite has been documented in the Kuruman province on the Kaapvaal craton (Donnelly et al., 2011). Multiple phases of kimberlite magma, with distinct mineral modes, are also reported from the Pipe 2 kimberlite, WKF, India (Dongre et al., 2014), but their age remain unknown. A further, isotopic and geochronological investigation of all the kimberlites of the WKF is required, in view of the presence of multiple emplacement ages of kimberlites on the EDC.

Some geodynamic implications

The Nd isotopic compositions of perovskite from TK-1 (microcrystic)  and TK-3 have a  depleted  signature, with T_DM Nd model ages of 1.2 - 1.3 Ga, and 1.4 Ga, respectively (Chalapathi Rao et al., 2016).  This points to ancient metasomatic enrichment of their source regions during the Mesoproterozoic, similar to that of other EDC kimberlites that have been linked to the break-up of the Columbia supercontinent at 1300 Ma (Chalapathi Rao et al., 2013). The TK-1 (macrocrystic) and TK-4 sources, however, experienced relatively younger source enrichment with T_DM Nd model age of ~ 1100 Ma, which is similar to the source-enrichment age of the Bastar orangeites (Chalapathi Rao et al., 2011). This latter source-enrichment age, interestingly, coincides with the widespread emplacement of kimberlites and related rocks into the Eastern Dharwar and Bundelkhand cratons of northern India, at 1100 Ma, which have been interpreted as representing the activity of a short-lived mantle plume during the Mesoproterozoic (Anil Kumar et al., 2007), as well as the timing of the assembly of the Rodinia supercontinent around1000 Ma (Dalziel et al.,  2000; Tappe et al., 2014).

The enriched signature of TK-1 (macrocrystic) and highly diamondiferous TK-4 (assuming it was emplaced at 90 Ma) necessitates their derivation from a long-lived, thick (> 150 km) lithospheric mantle source. Heat-flow, magnetotelluric and seismic receiver function investigations indicate a much thinner modern day lithosphere thickness (<100 km) for the Eastern Dharwar craton (Pandey and Agrawal, 1999; Gokarn et al., 2004; Kumar et al., 2007). It has been argued that much of the lithospheric root beneath India may have been lost and/or modified during the breakup of Gondwana, and hence the (or during the) rapid northward drift of the Indian plate in the Cretaceous (Negi et al., 1986). However, the presence of diamondiferous orangeites of (i) ca. 65 Ma on the Bastar craton, central India, and (ii) ca. 90 Ma on the Eastern Dharwar craton, southern India, necessitates the survival of thick lithospheric roots up to at least the Late Cretaceous (ca. 90 Ma) in the EDC, and up to 65Ma in the case of the Bastar craton (Lehmann et al.,  2010) as the preservation of a rigid (cool) mantle keel extending into the diamond stability field is a requirement for the  transport of diamonds to the earth’s surface. If the geophysical perspective of a thinner modern-day Indian lithosphere is correct, then it is likely that  interaction of the Indian plate with the Marion (at ca. 90 Ma; Fig. 13) and the Reunion (at ca. 65 Ma) mantle plumes might have played a major role in the destruction of lithospheric roots by eroding  the lower portions of  the Indian plate, thereby facilitating its rapid northward movement after the  Late Cretaceous (Pandey and Agrawal, 1999; Eagles, 2013).
